10W Longer Laser Module For Ray5 Laser Engraver Laser Cutter Wood Acrylic Cutting Metal Engraving
Longer
Longer Ray5 10W Laser Module Feature:
- 【Powerful Cutting】 Adopts compressed double beam technology, more powerful, finer laser beam, Longer focal length, max engraving speed is 10000 mm/min, and the maximum cutting thickness can be up 30mm, 8 -10mm thickness plywood could be cutted by one pass.

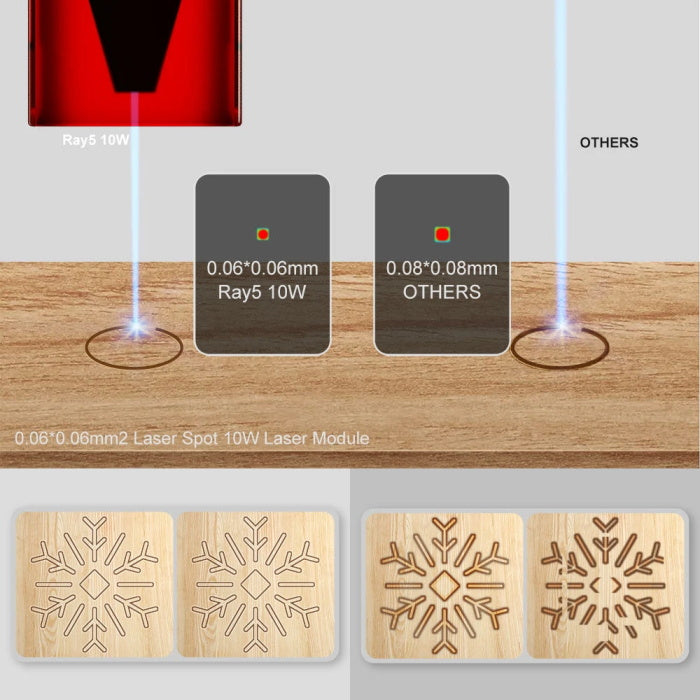

- 【Precision Engraving】0.06mm² ultra-fine laser spot, two times thinner than ordinary lasers, making Longer RAY5's cutting & engraving more precise and fewer burn marks.
- 【1000+ Materials for DIY】Support engraving materials: All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal. Support cutting materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

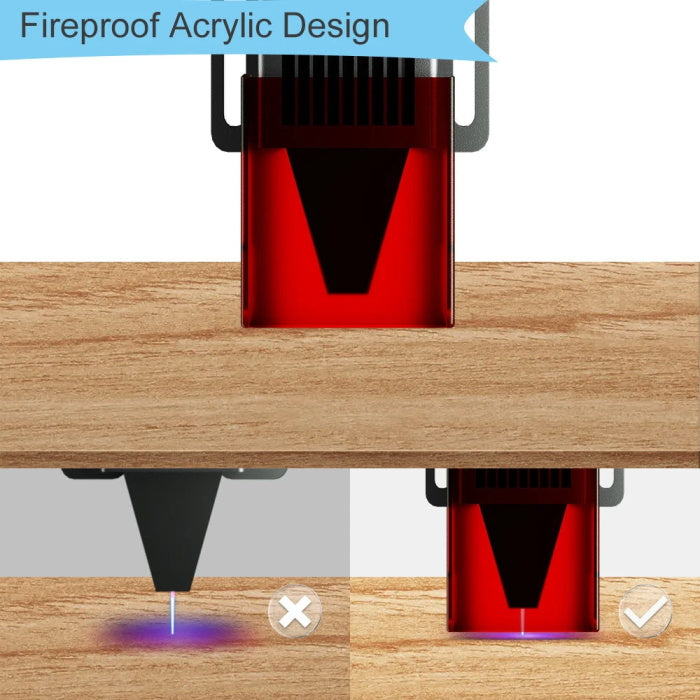

- 【Eye Protection】Equipped with the latest panoramic filter glass protective cover, which plays a good role in protecting the eyes, filtering 97% of ultraviolet rays, no need to wear additional protective glasses. And the service life of the laser is about 20,000 hours.
- 【Wide Application Scene】Below is a list of some of the most popular laser engraving ideas: Company logos, Signage, Christmas ornaments, Spice jars, QR codes and barcodes for clients, Photo engraving, Personalized products, Business cards, Wine glasses, Key chains, Customized jewelry, Theme toy boxes, Coasters, Artwork, celebration and special occasion gifts, Custom metal cups.
Ray5 10W Laser Module Parameter:

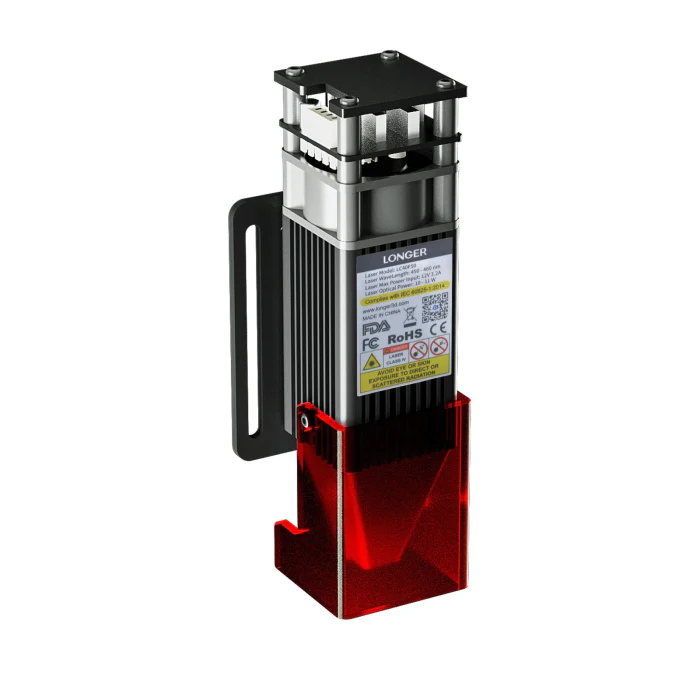

- Model: LC40F50 Longer Ray5 10W laser module

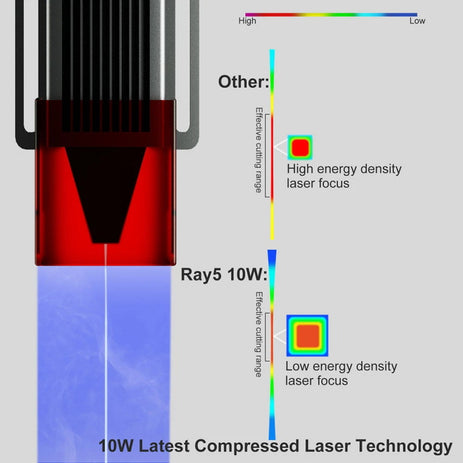

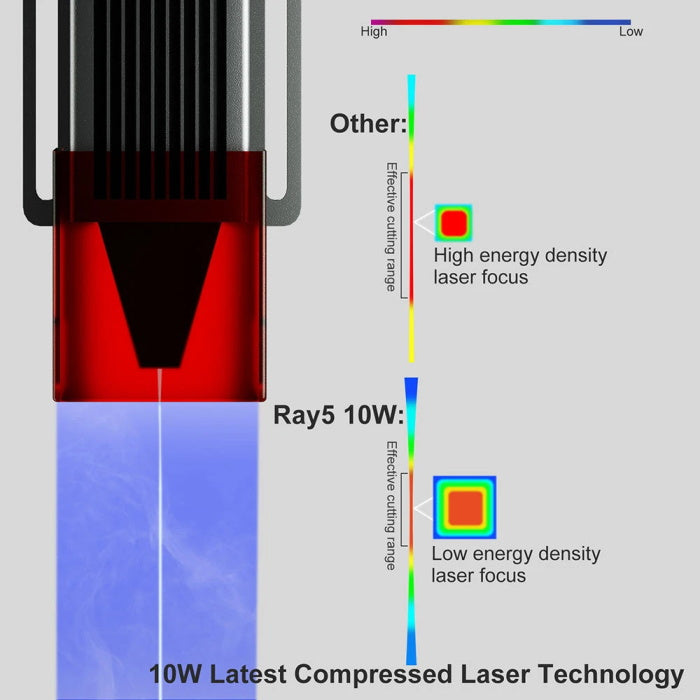

- Laser Technology: Compressed Double Beam Technology
- Wavelength: 450 - 460 nm
- Max Power Input: 12 V 3.2 A
- Optical Power Output: 10 - 11 W
- Focus Type Fixed Focus: 50mm Focal length
- Ultra-fine Laser Spot: 0.06*0.06mm2
- Laser Class: FDA Class IV, or Class 4 IEC standard
Applicable Material:
- Engraving: Plywood, Basswood, Hardwood, Pinewood, Acrylic, Kraft paper, Stainless steel, Aluminum alloy, Ceramics, etc.
- Cutting: 10mm Basswood, 14mm Pinewood,6mm Acrylic, 4mm Bamboo, Kraft paper, etc.
- Working Temperature: 0℃~70℃
- Net weight:285g
- Package Size: 230*100*125mm
- Package Weight: 435g
- Packing List: 1x 10W laser module; 1x focusing column
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
