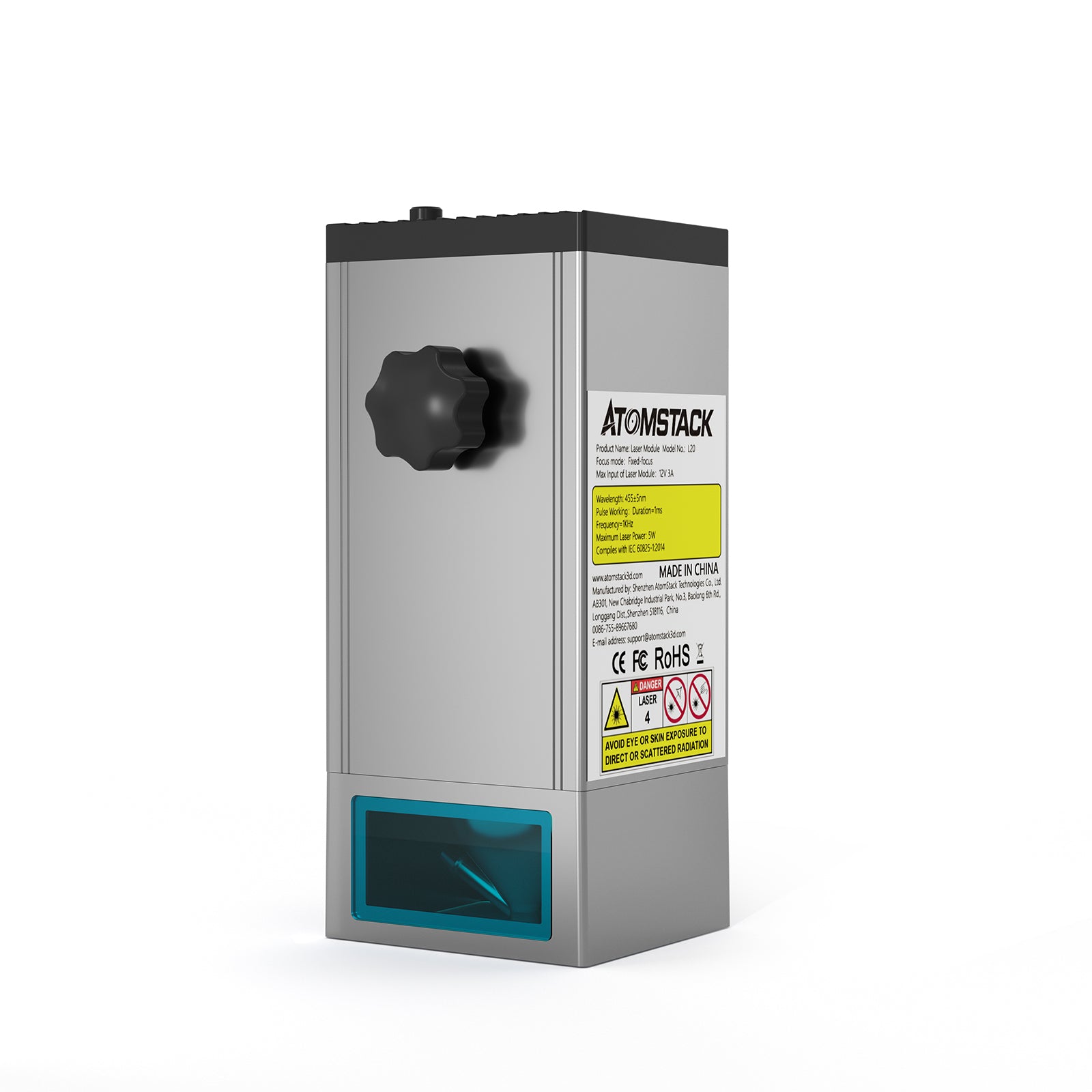

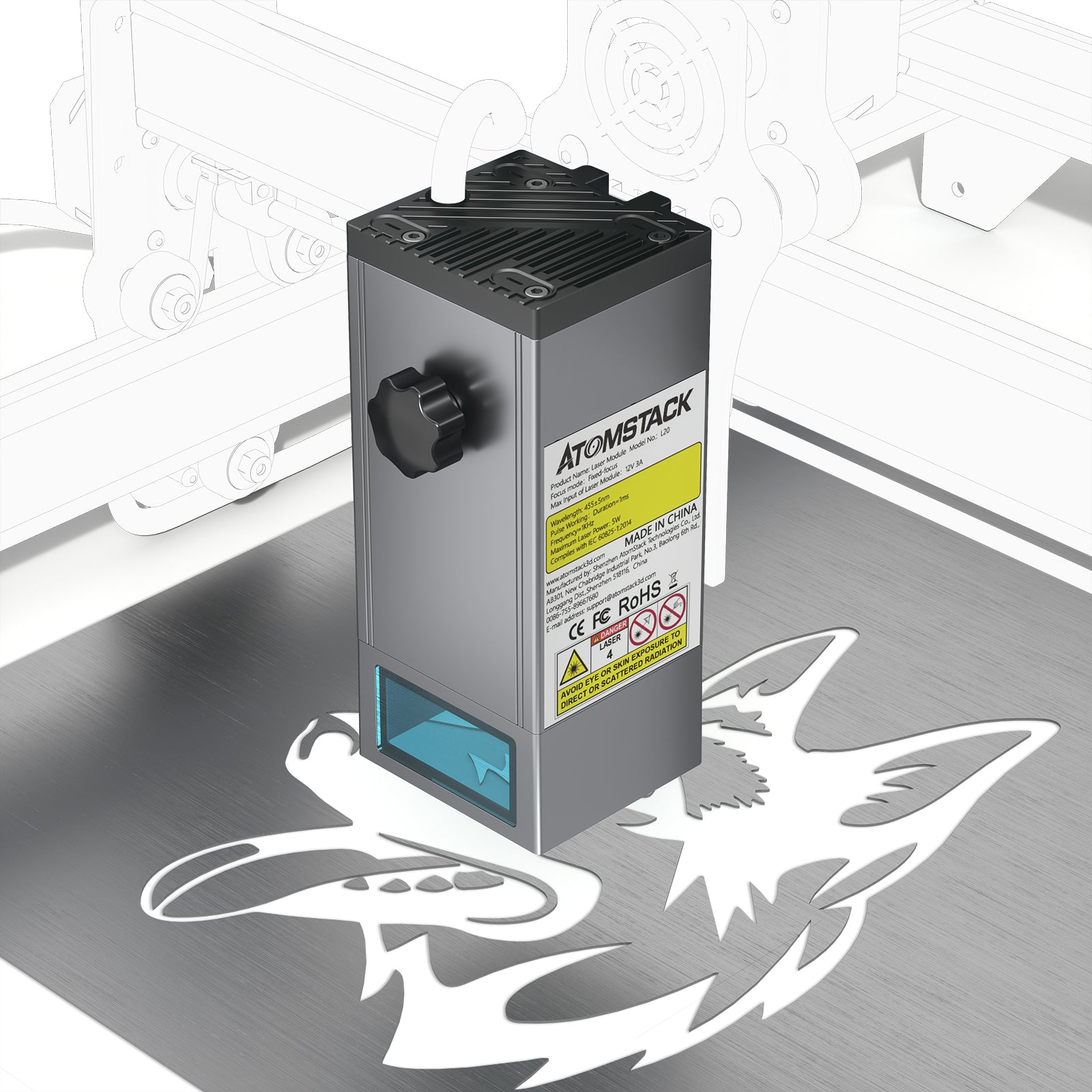

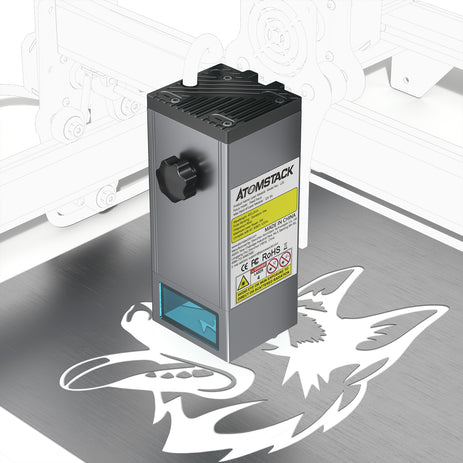

Original ATOMSTACK M100 130W Air Assist Quad Laser Module With Eye-protection & Adjustable Cleaner Smoother Cutting Object Edges for ATOMSTACK 5W Series and 10W Series

Atomstack M100 130W Laser Module Features:

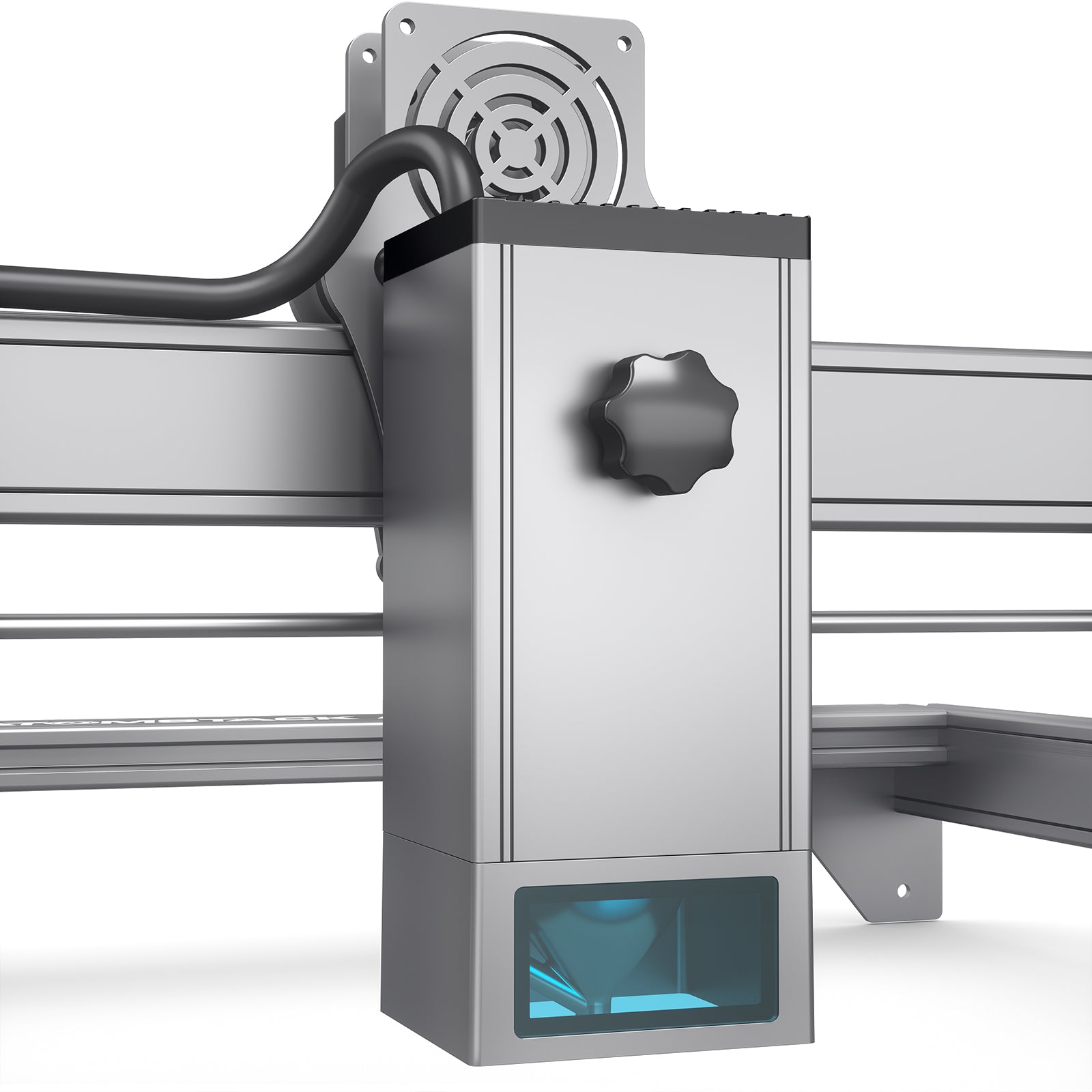

• Strong Compatibility:The ATOMSTACK M100 laser module can be installed on any laser engraving machine model of Atomstack 5W series and 10W series (A10Pro/S10Pro/X7Pro), just use the corresponding adapter board, and it can be used without any additional settings. Comes with a free adapter in the box, the laser module is compatible with Ortur, NEJE, TwoTrees laser engraver as well.
• High Energy and Faster Speed: 20W laser power engraver. The laser output power soars up with the latest generation of four 6W laser coupling technology, which is able to cut off 12-15mm thick tungsten board as well as the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.
• Upgraded Laser: No need to adjust the focus before engraving. The focusing spot area is only 1/3 of other ordinary lasers. Combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

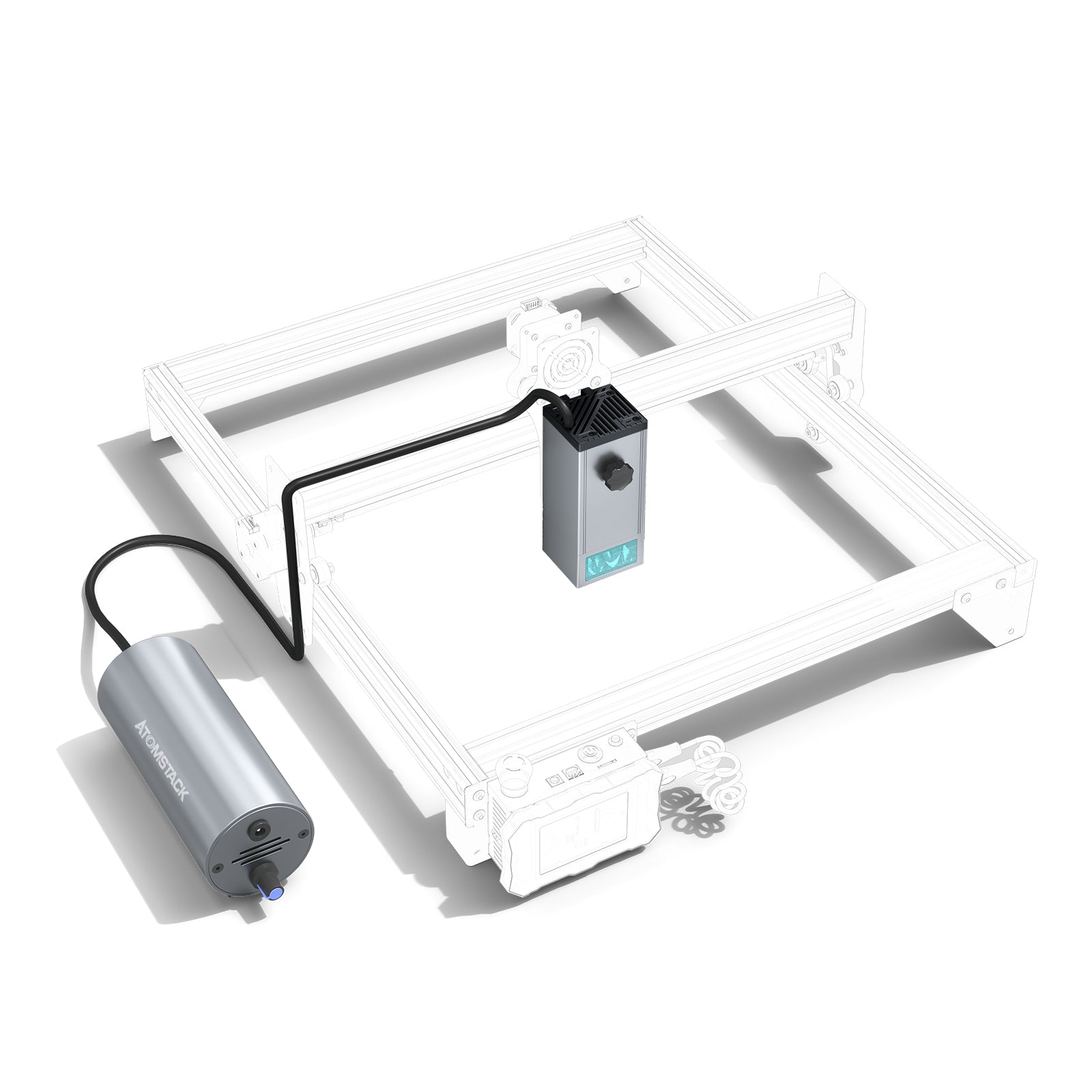

• Air Assist Kit: 10-30L/min adjustable airflow, can effectively remove the smoke and dust generated in the process of laser cutting/engraving, prevent the smoke and dust from causing laser energy attenuation, ensure the stability of laser energy, and make your engraving / engraving Cut pieces for best results.
• Great Quiet Working Performance: Only 60dB noise is generated during the working process, which is similar to the volume of household electric fans when working, giving you a quiet laser engraving and cutting environment. Easy to install and use, no need to buy additional accessories, just two steps to install and use.
• Various Material to Cut and Engrave: Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife. Cuttable materials are including cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

M100 130W Laser Module Specification:

• Brand: Atomstack
• Module Model: M100
• Optical Output Power: 20-21W
• Product Material: Aluminum 6061 Anode
• Housing Size: 140*65*60mm
• Circuit Board Size:44*52mm
• Circuit Board:V/PWM Modulation Board
• Wire Rod:22# 2P2.54 Terminal Reverse Wire 80mm
• Optical Lens:φ6/glass
• Fan: 24V
• Laser Beam Mode:Spot
• Working Mode:Pulse Work
• Light Spot Size:0.08*0.1mm
• Wavelength: 445±5nm
• Engraving Accuracy: 0.01mm
• Working Time 10000H
• Working Temperature: 0℃~70℃
• Storage Temperature: 一40℃~85℃
• Sintering Temperature: 2000~2400℃
• Product Net Weight: 715g
• Model: F30
• Parameter: 10-30L/Min (Adjustable airflow speed)
• Noise decibel: 60dB
• Package weight: 1KG/2.2lbs

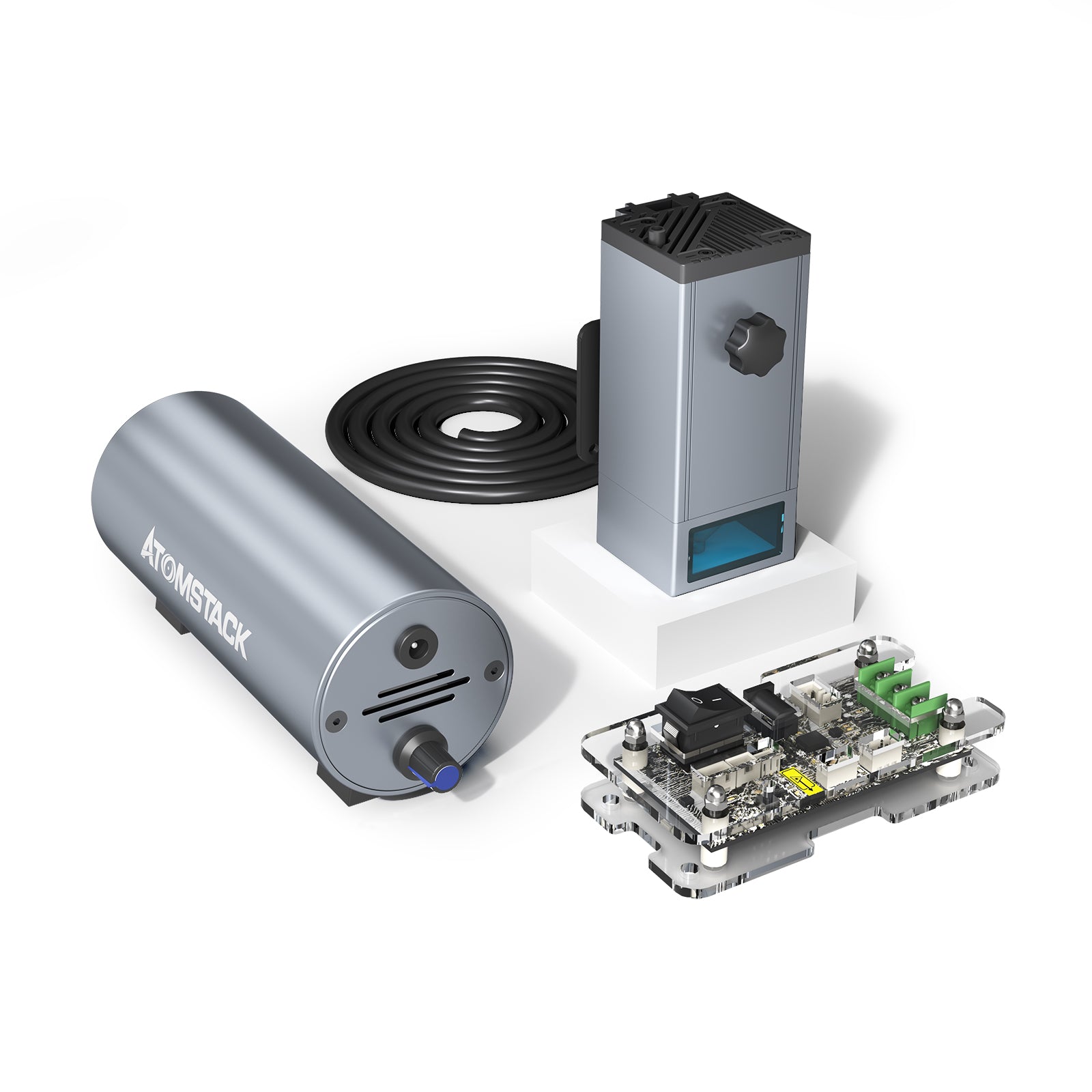

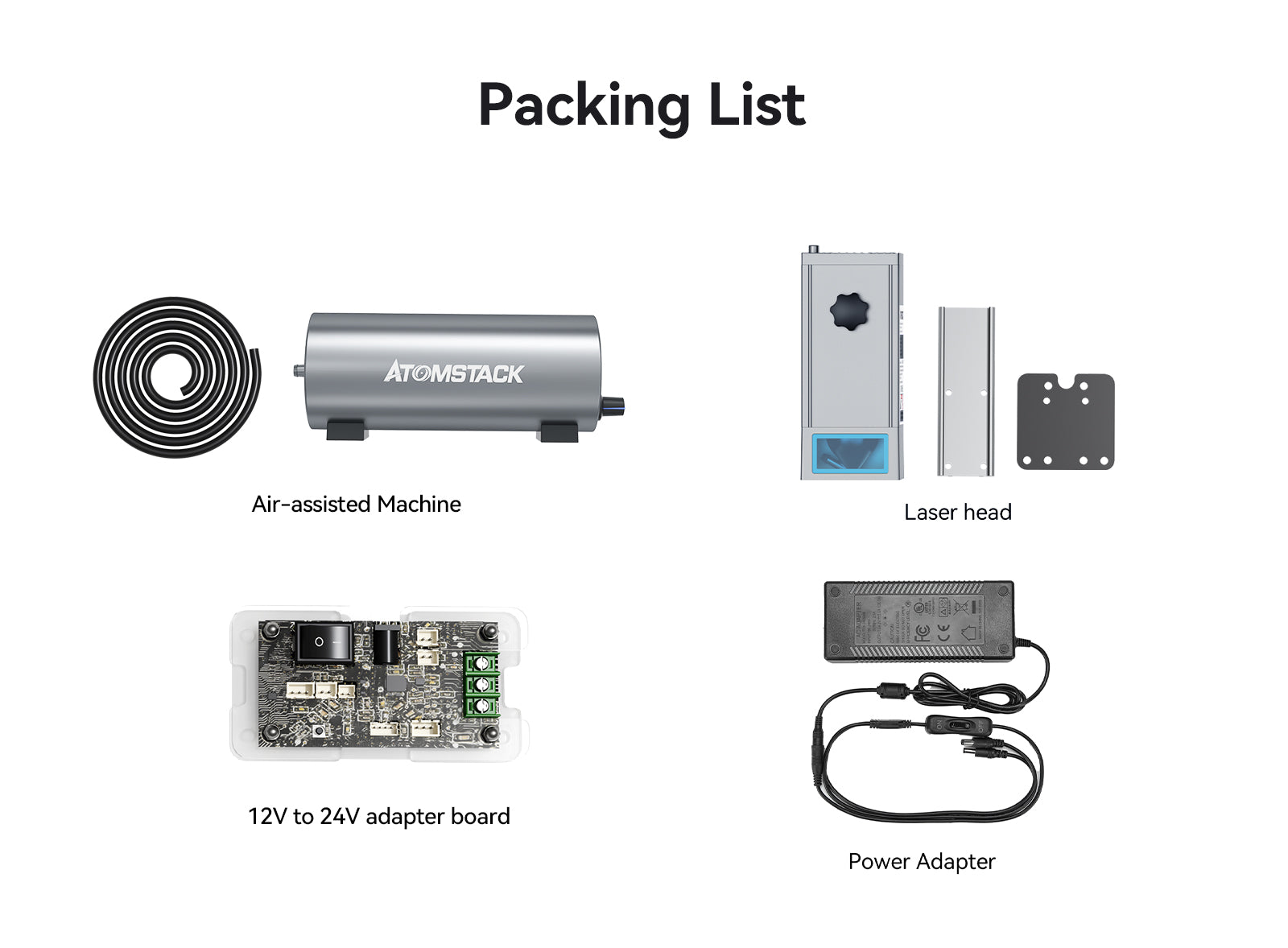

Packing List:

• 1 x M100 Laser Module
• 1 x PCB Circuit Board
• 1 x Compatible Plate (A5 series and 10W series use different adapter boards, please pay attention to the distinction)
• 1 x Fixed Focus Plate
• 1 x Connection Line
• 1 x Wrench
• 1 x Screws
• 1 x Power Supply
• 1 x Air assist kit

Cautions:

1. The laser light emitted by the laser module is likely to injure a person's eye, so do not directly gaze at its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2. Laser module needs an appropriate laser driver(PCB). When the laser module connects with the power supply, please set the output voltage to zero.& The adjustment of the current should be slowly increased or decreased to avoid damaging the device.
3. Keep the device working or stored in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.
4. Working at high temperatures will increase the threshold current, reduce conversion efficiency, and speed up the aging of the device.
5. When the output power is higher than a specific parameter of operation, it will accelerate the aging of the device.
6. When the operating temperature of the laser diode is over 70degree, please do well heat dissipation of it.
7. This laser module is an electrostatic-sensitive device. Please make sure to ground yourself or wear an antistatic wrist strap before you take it.
