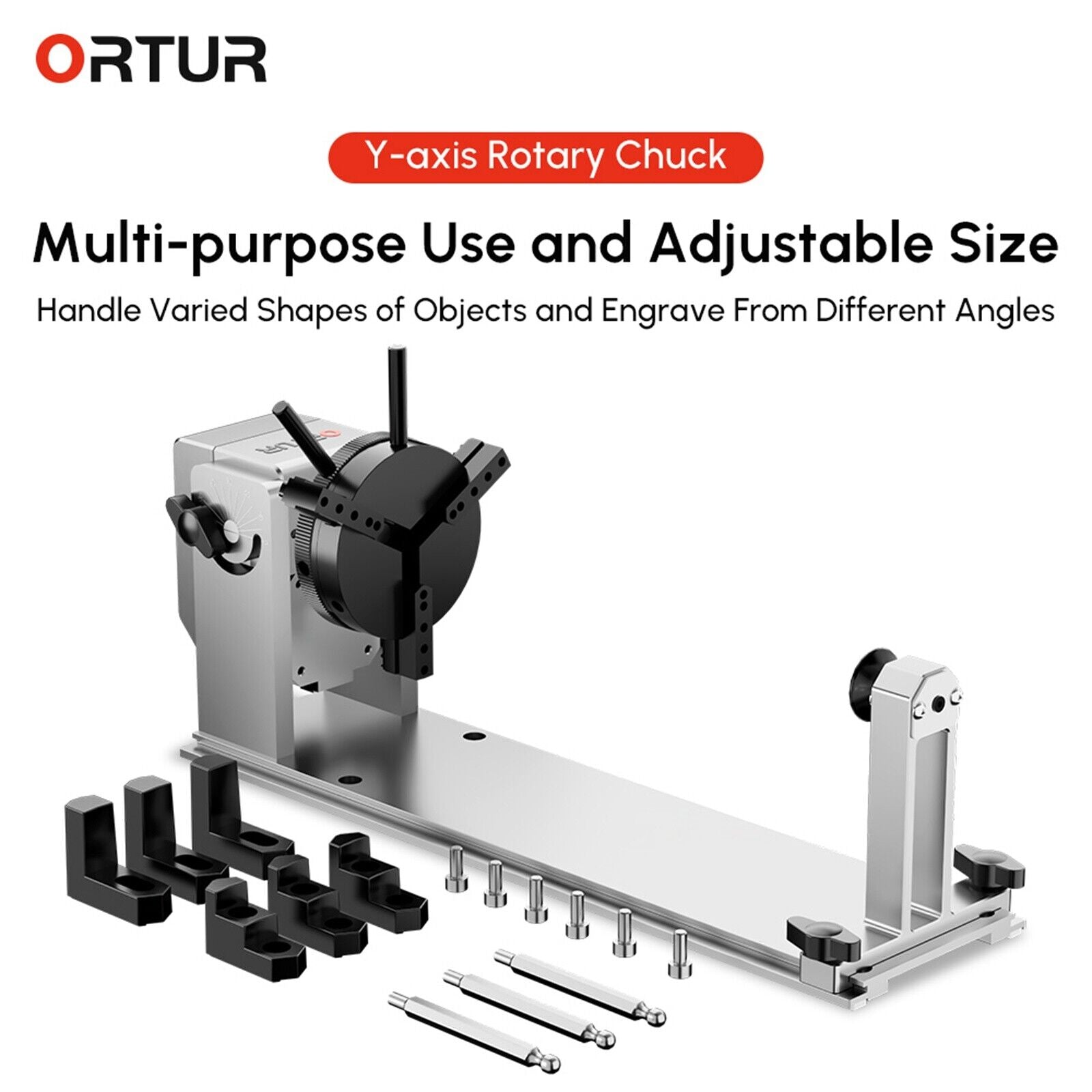

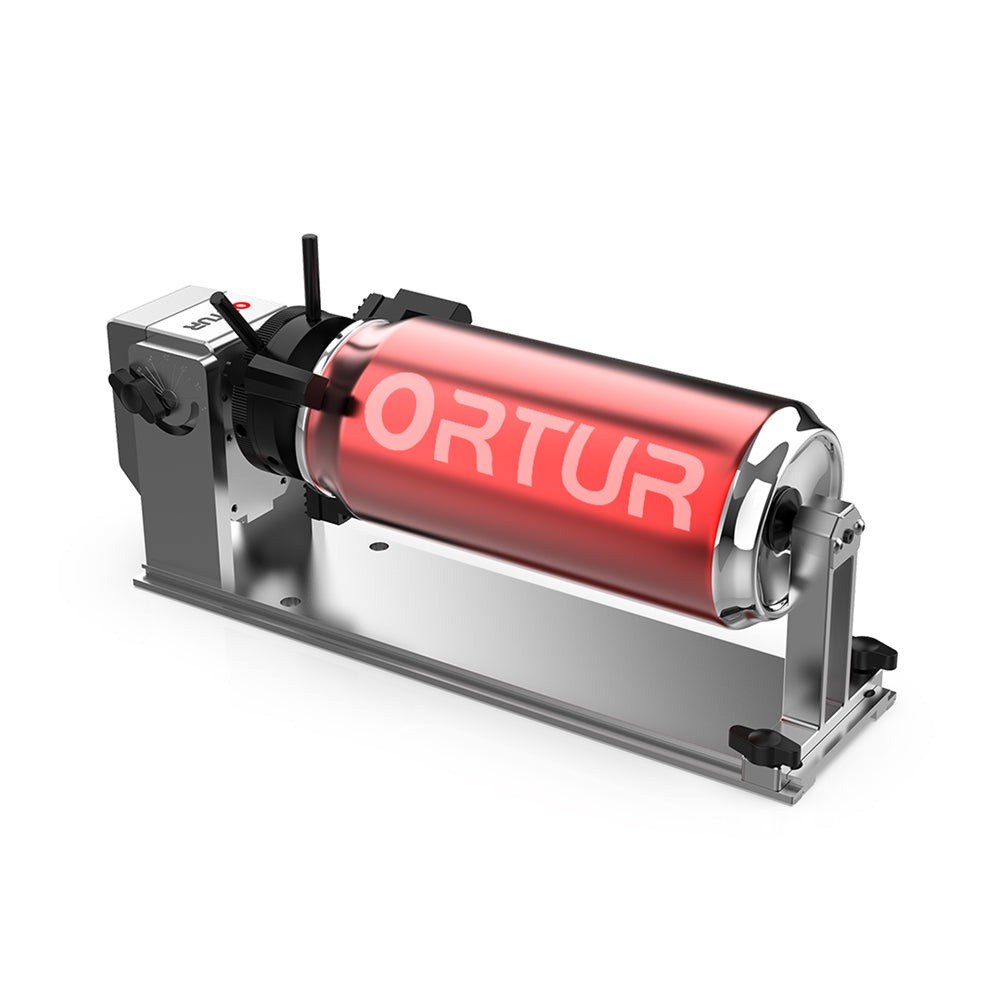

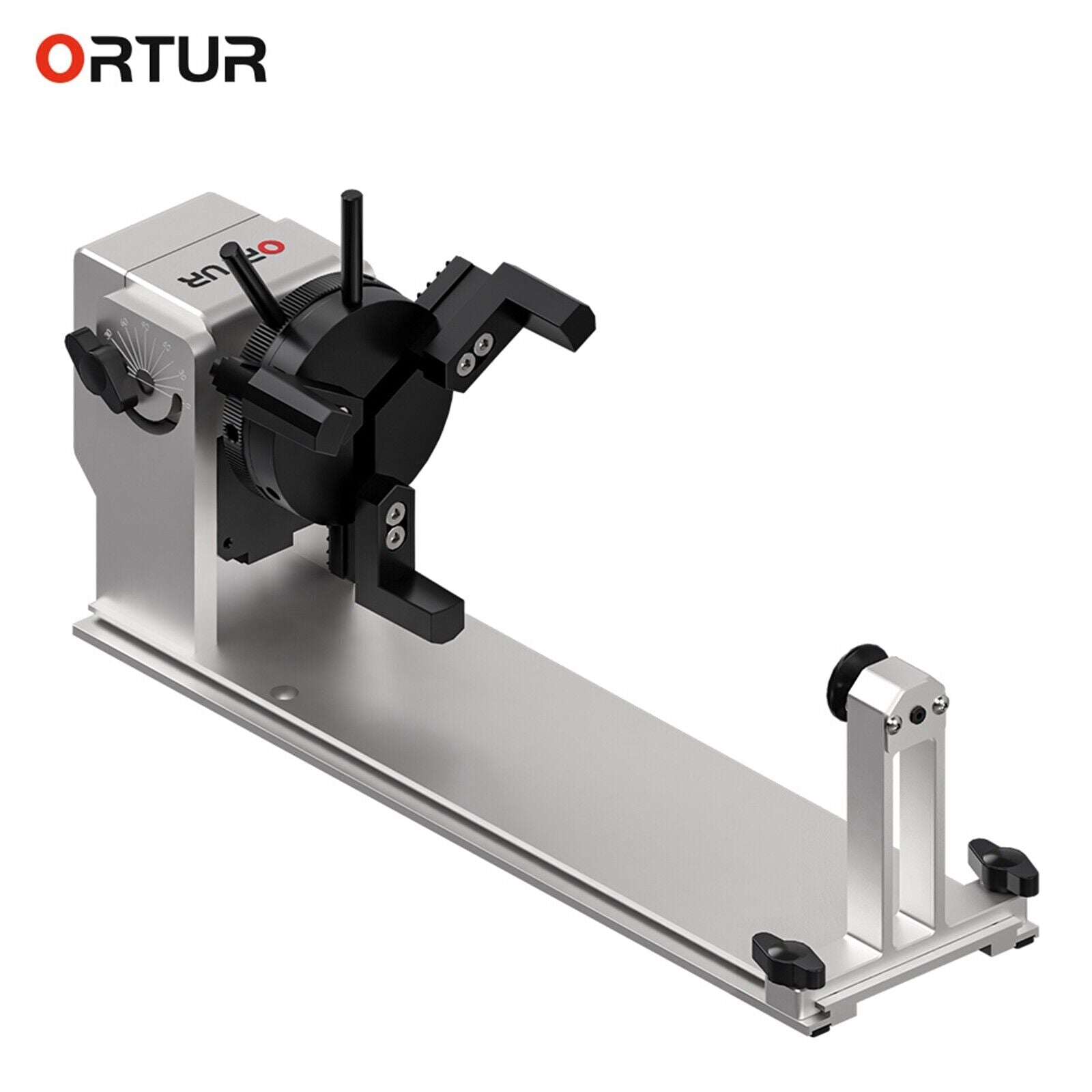

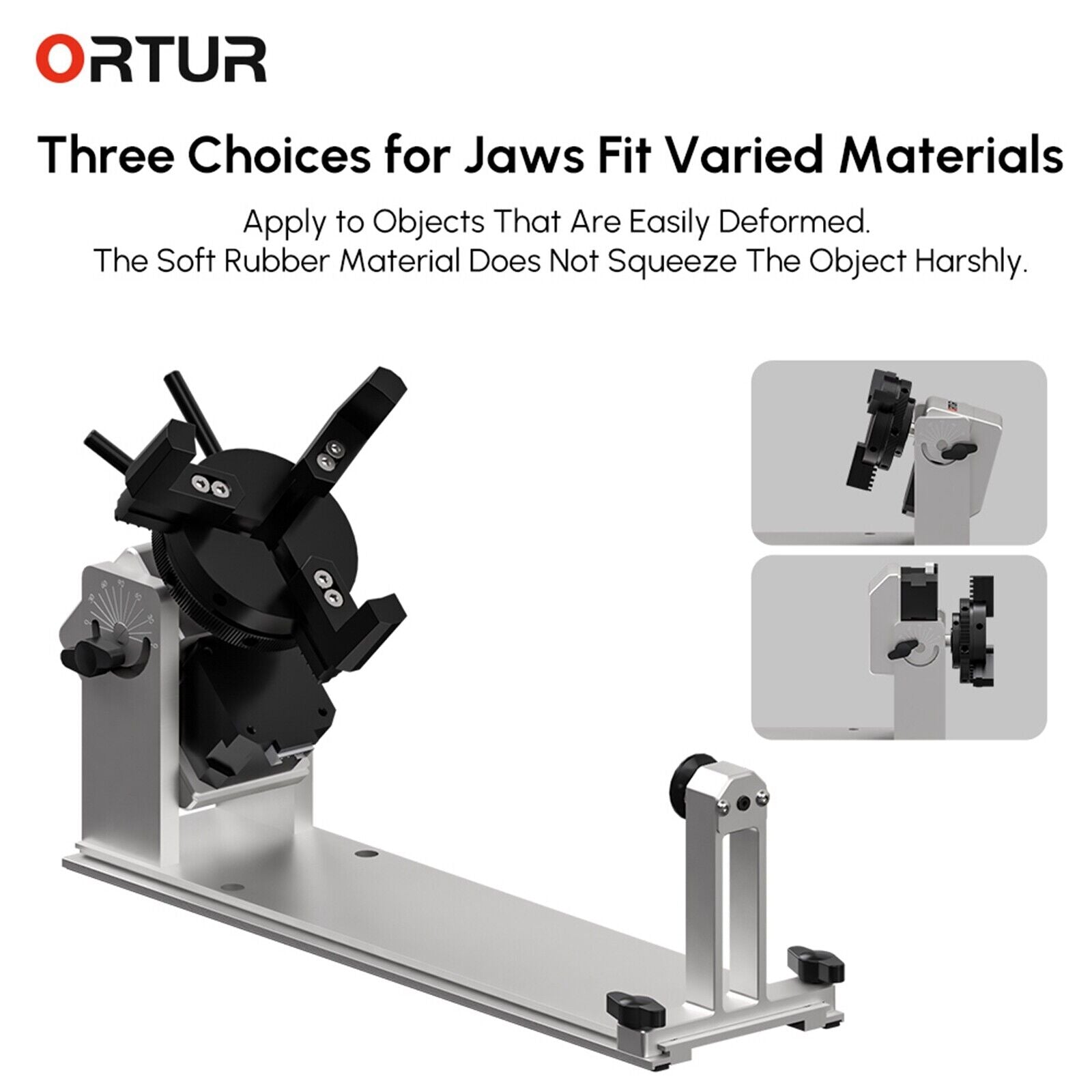

Ortur Y-axis Rotary Chuck for Laser Engraver YRC1.0 Rotary Roller with 3 Jaws
Ortur
● Easy to install, sturdy and reliable.
● Aluminum alloy material, one-piece structure.
● Elevation angle can be adjusted 180°, rotate 360° without disassembly.
● Engraving accuracy 0.45°, engraving diameter range up to 120mm.
● Can be used for rings, cups with handles or irregular items, etc.
Ortur Y-axis Rotary Chuck Features:

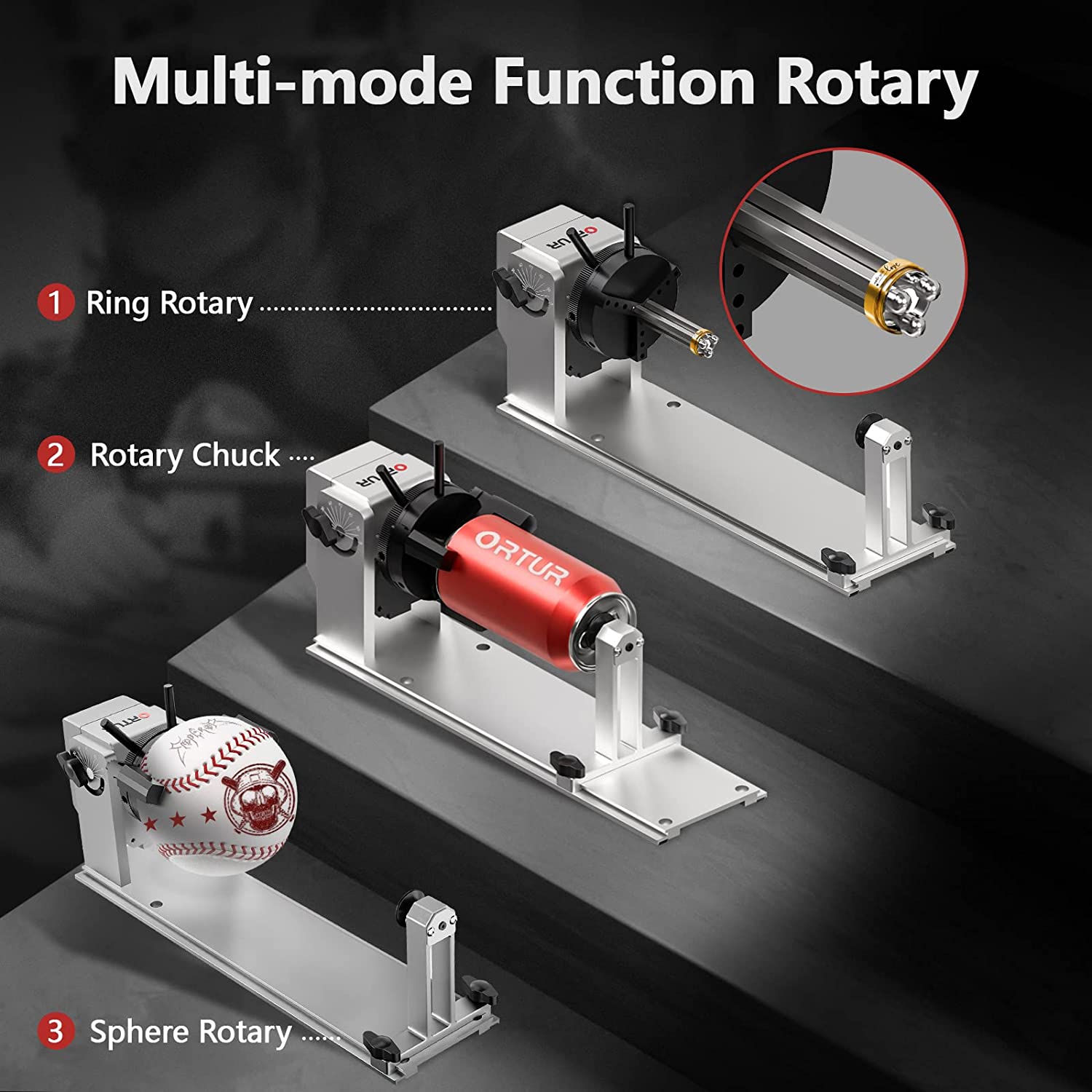

- Multi-mode Ortur Y-axis Rotary Chuck.
- The elevation angle can be adjusted 180°, the rotation is 360° without disassembly.

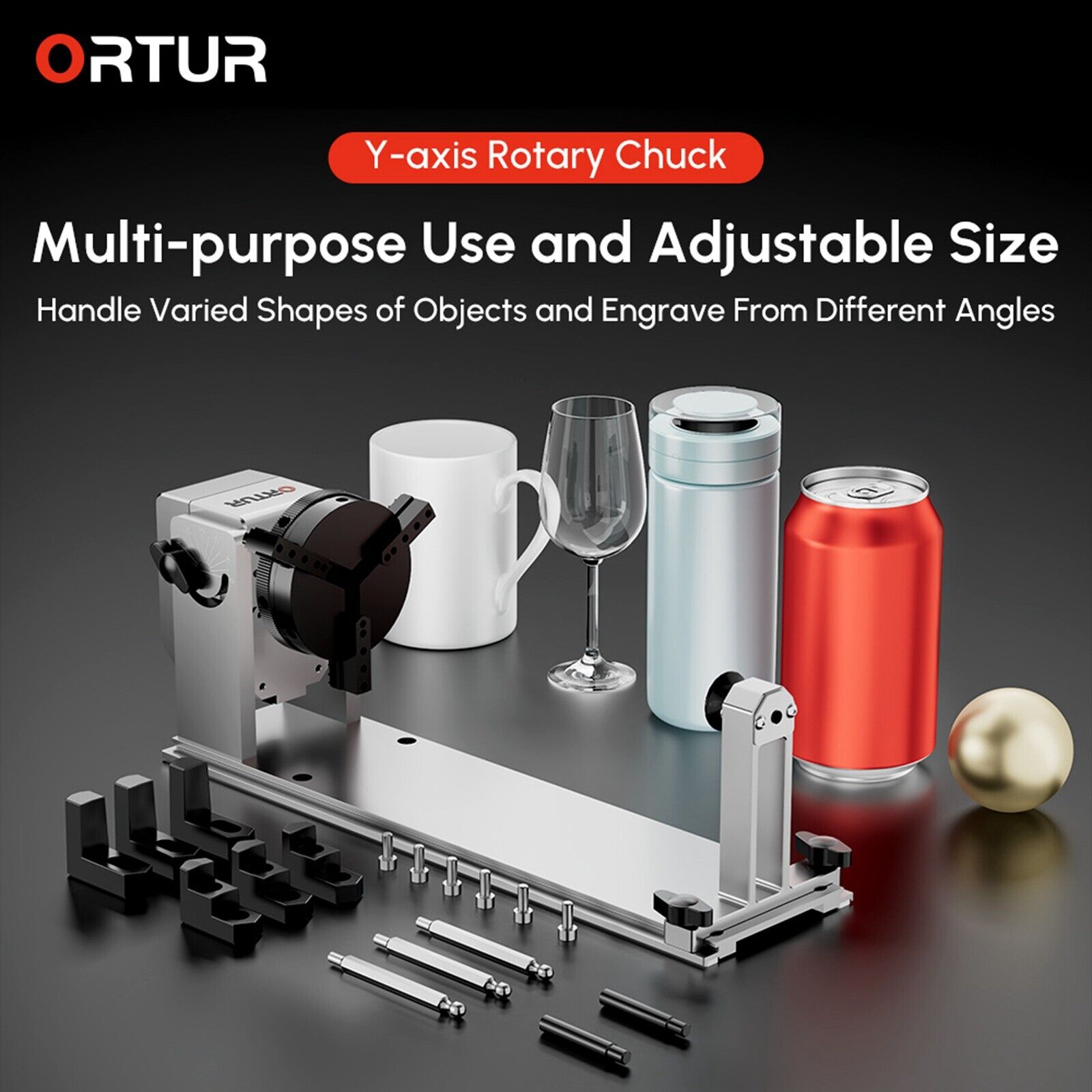

- Can be used to rings, cups with handles or irregular items, etc.
- Engraving accuracy 0.45°, engraving diameter range up to 120mm.
- Aluminum alloy material, one-piece structure.
- Easy to install, sturdy and reliable.
Ortur Y-axis Rotary Chuck For Laser Engraver Specifications：
- Product name: Ortur Y-axis Rotary Chuck (YRC1.0)
- Product type: laser engraving machine accessories
- Product size (mm): maximum expanded size: 323 * 126 * 156mm
- Product color: black+silver
- Material: aluminum alloy+stainless steel+ABS plastic
- Supported models: all outur laser engraving machines
- Net weight of product (including accessories): 1.5kg
- Gross weight of package: 2kg
- Drive mode: single motor drive
- Maximum angular velocity: 360 °/s

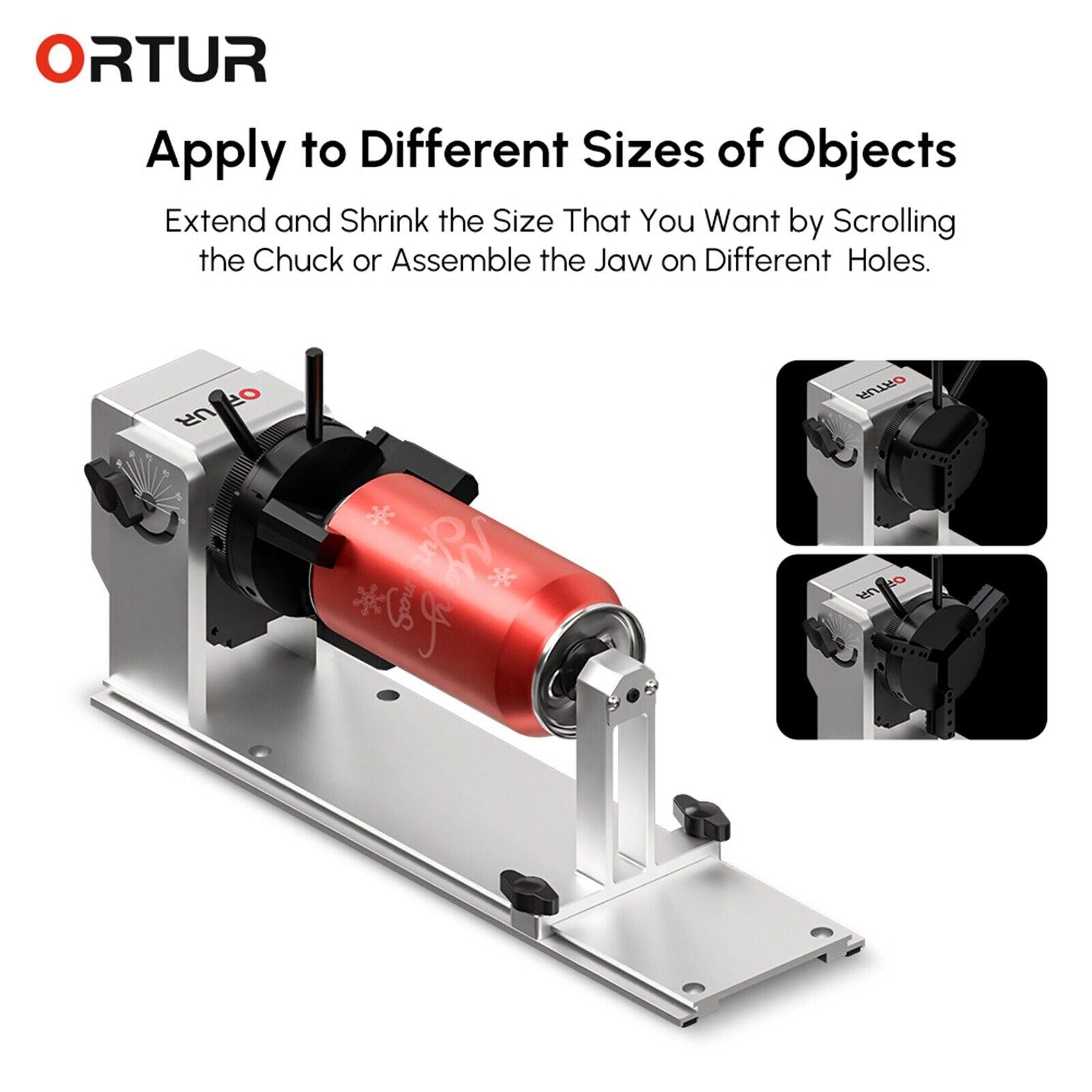

- Engraving diameter range:
- Chuck: 1-120mm Sphere: 25-150mm Ring: 11-100mm
- Engraving length range using tailstock: 0-200mm

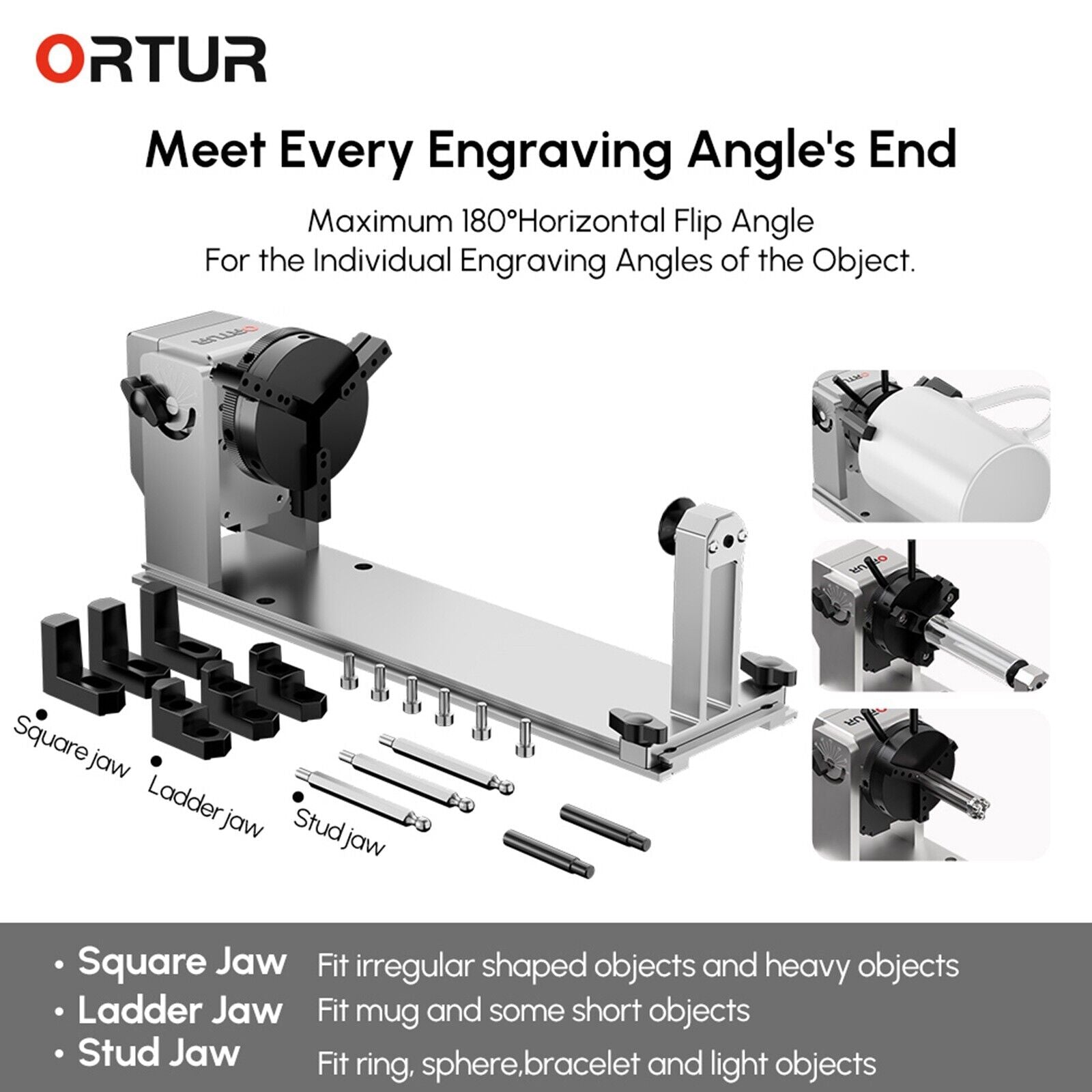

- Chuck elevation adjustment range 0-180 °
- The software supports LaserExplorer, LightBurn and LaserGRBL
- Power supply The power input depends on the power supply and control of the laser engraving machine
- 180 Degree Horizontal Flip Angle and 360 Degree Rotating Engraving Fits Different Sizes of Objects Rings Mug Cup Wine Glass Cup Ball Compatible with Ortur/Atomstack/Xtool/Twotrees/NEJE/Sculpfun

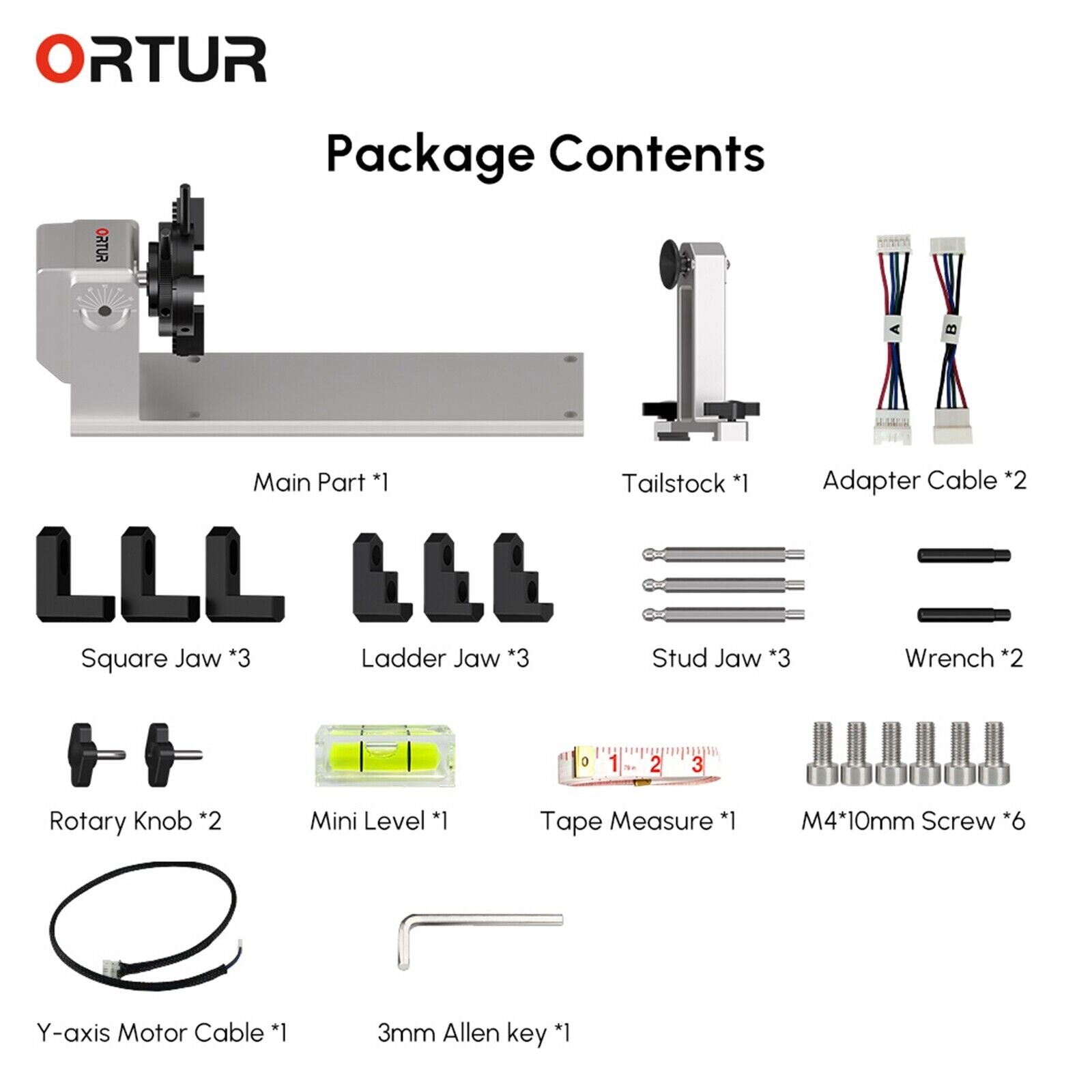

Packing List:
- Rotary chuck * 1
- Tailstock module * 1
- Tape * 1
- Y motor wire * 1
- Storage box * 1 (3 long claw assemblies, 3 step claw assemblies,
- 3 stud assemblies, 2 wrenches, 2 M4 * 16 hand screws, 1 mini level,
- 1 3mm Allen wrench, 6 M4 * 10 cup head Allen screws)
- Adapter line A * 1
- Transfer line B * 1
- Instructions * 1
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
