SCULPFUN S30 Ultra 33W Laser Module Upgrade Kit for S9/ S6 / S6 Pro

Features:

• Upgrade S9 to S30 Ultra-33W:This SCULPFUN official S9 upgrade kit helps upgrade S9 to the main functions of S30 Ultra-33W. The package includes S30 Ultra-33W laser module, S30 Ultra motherboard, S30 Ultra air pump, air tube, limit switch, S30 Ultra power adapter, cable, screw bag, laser repair kit and other essential items.
• Enhanced Ultra-33W Laser:The S9 laser machine upgrade kit adopts a single enhanced 6W diode, which makes its actual laser power and cutting ability higher. Compared with Sculpfun S9 laser engraver(5.5W cuts 3mm balsa wood and 3mm plywood in one pass time), S9 upgrade kit 33W can cut 15mm balsa wood and 10mm plywood in one pass time.
• Upgraded 32-bit Air Assist Motherboard: The latest 32-bit motherboard has a stronger computing and greatly improves the overall performance compared with S9(8-bit) main control board, which can realize faster cutting speed and more stable cutting effect. It supports automatic air assist control function, supports Bluetooth wireless connection to control the machine, and is not limited by the distance of the USB cable.

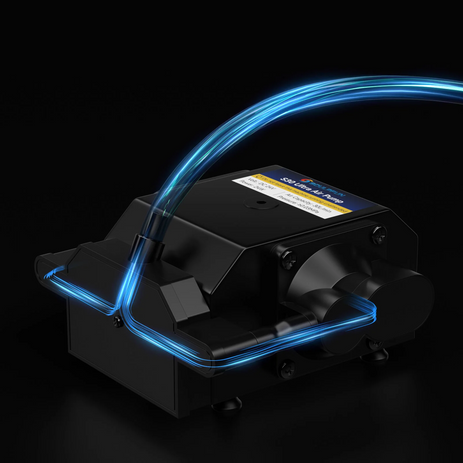

• High-speed Air Assist Pump:Significantly improve the cutting penetration and cutting efficiency with faster cutting speed and cleaner cutting surfaces. The high-speed airflow of 13.5m/s with high-pressure air-assist nozzle makes it can cut plywood and MDF panels more than 5 times faster, and cutting surfaces are cleaner and no smoky.
• Standard S9 XY-axis Limit Switch:t is perfectly suitable for S9 laser machine and can be installed and used directly. After installing the limit switch, the machine will open the homing and positioning function, which is very suitable for repeated positioning or batch manufacturing work.
• Replaceable Protective Lens:S9 machine upgrade kit adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power. One free lens is included in the package with purchase, lenses are very cheap and can be easily purchased from SCULPFUN.
• New Upgrade Laser Eye Shield:SCULPFUN S9 upgrade kit is equipped with a detachable glass eye shield, which will not be dazzling even if you don't wear glasses. In addition, you can easily disassemble it if you don't need it.
• Compatibility Design:The S9 upgrade kit has been designed to maintain a certain compatibility, and except for the S9 machine, it can also be upgraded to the SCULPFUN S6/S6 Pro or similar 2-axis laser machines.

Tech Specs:

• Diode laser output power: 33W
• Laser focus: 0.08x0.10mm
• Laser wavelength: 455±5nm
• Focusing method: 40mm fixed focus column + sliding device
• Laser protection cover: Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.
• Laser shell material: 6063 aluminum
• Applicable Machines: SCULPFUN S9/S6/S6Pro
• Type: main board controlled air pump,
• voltage 24V, flow rate 30L/min
• Air hose inner diameter: 7.5mm
• Power input: 100-240V AC, 50/60HZ
• Output: 24V 7A
• Motherboard: 32-bit air assist motherboard, support wireless Bluetooth connection to control machine, not limited by the distance of USB cable
• Package weight: 3.32KG
• Packing size: 390*300*117mm
• Cutting/Engravable Materials: Cutting materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board Carving materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone Operating Software: LightBurn (with air assist function M8), LaserGRBL, Benbox, GrblController, LiteFire, support Windows system, support MAC system. The supporting file formats are NC, BMP, JPG, PNG, DXF and other picture formats.
• Data Transmission Method: USB connection or Bluetooth wireless connection
• NOTE: Due to the installation of limit switches and the lager size of laser head, the actual working area of the machine will be reduced, which is about X: 375mm Y: 380mm.

Packing list:
1 x 33W Laser Head (with installation plate)
1x Metal Laser Cover
1 x 24V DC Air Pump
1 x Air Tube
2 x Limit Switch
1 x 32-bit Motherboard
1 x Motherboard Protective Shell (with Bluetooth Antenna)
1 x Terminal Data Cable
1 x 24V 7A Power Adapter
1 x X-Motor Extension Cable (for machines that have been upgraded with linear guide)

1 x Laser Repair Kit
1) wrench screw bag:
sealing ring -2pcs
kimi screw M3*3 -2pcs
L-shaped wrench 1.5mm -1pcs
2) Tweezers ESD-10 -1pcs
3) Window Mirror Box (including window mirror: quartz material) -1pcs
4) Plastic PP box -1pcs
5) Dust-free Cloth -1pcs

1 x Laser Srew Bag
1) head bolts M4*10 screw head φ12*8 -4pcs (fixing laser head)
2) head bolts M3*4.5 -2pcs (fixing laser cover)

1 x Material Bag
1) fixed focus column φ16xH40mm -1pcs
2) black Velcro cable tie -3pcs
3) black Locking Wire Tie -10pcs
4) groove strip (80mm) -8pcs
5) nozzle clean brush -1pcs

1 x Installation Instruction
