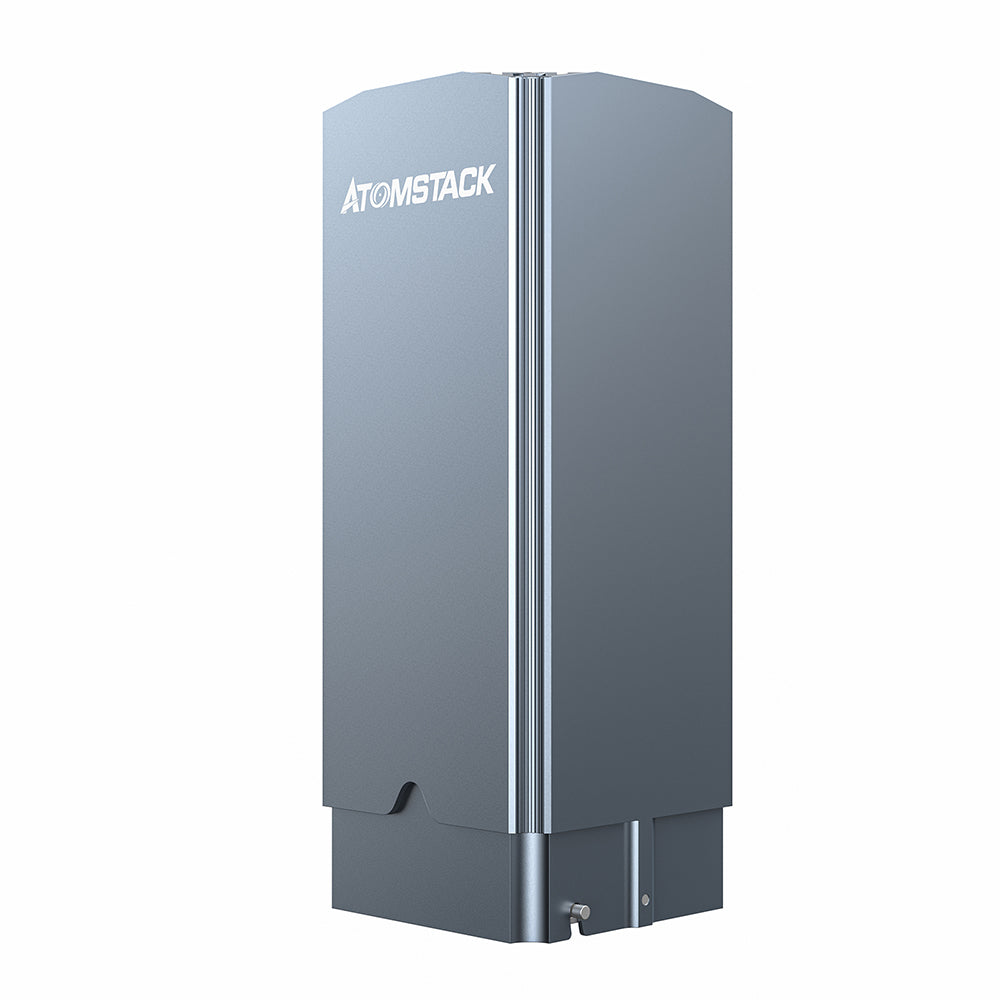

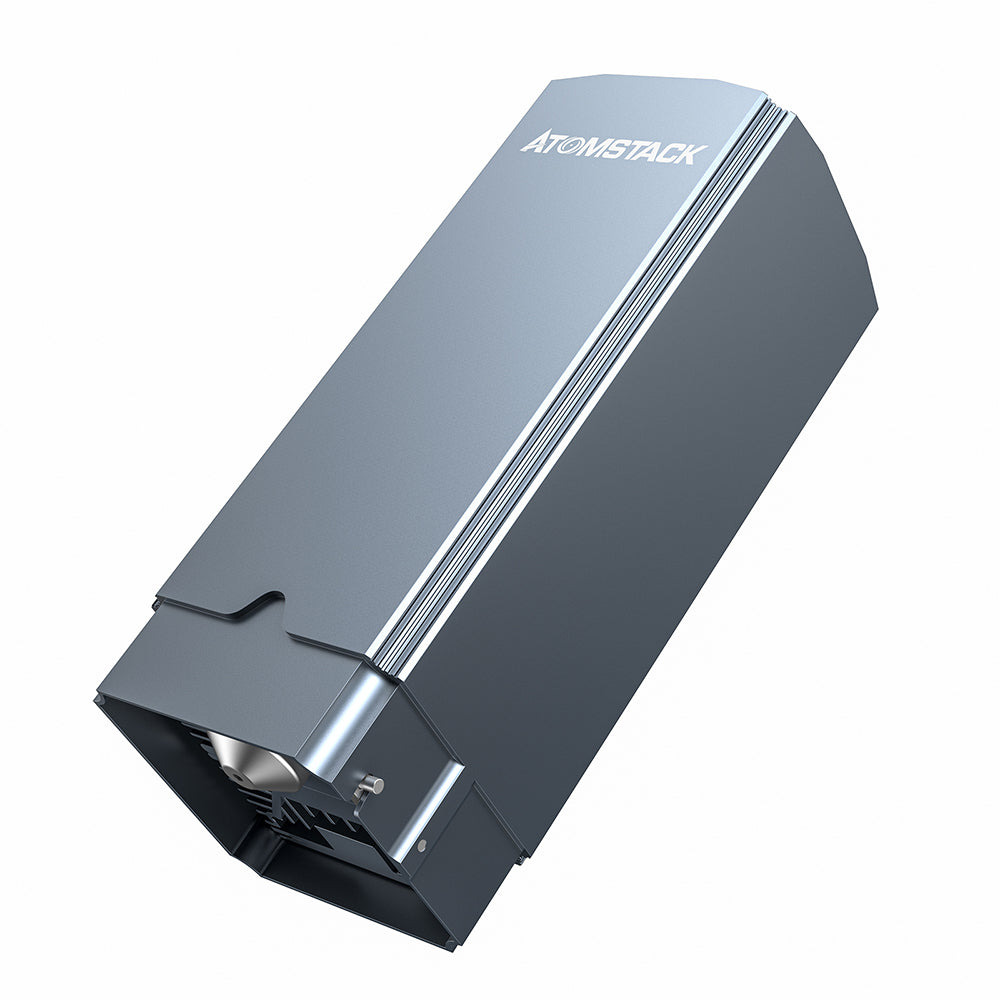

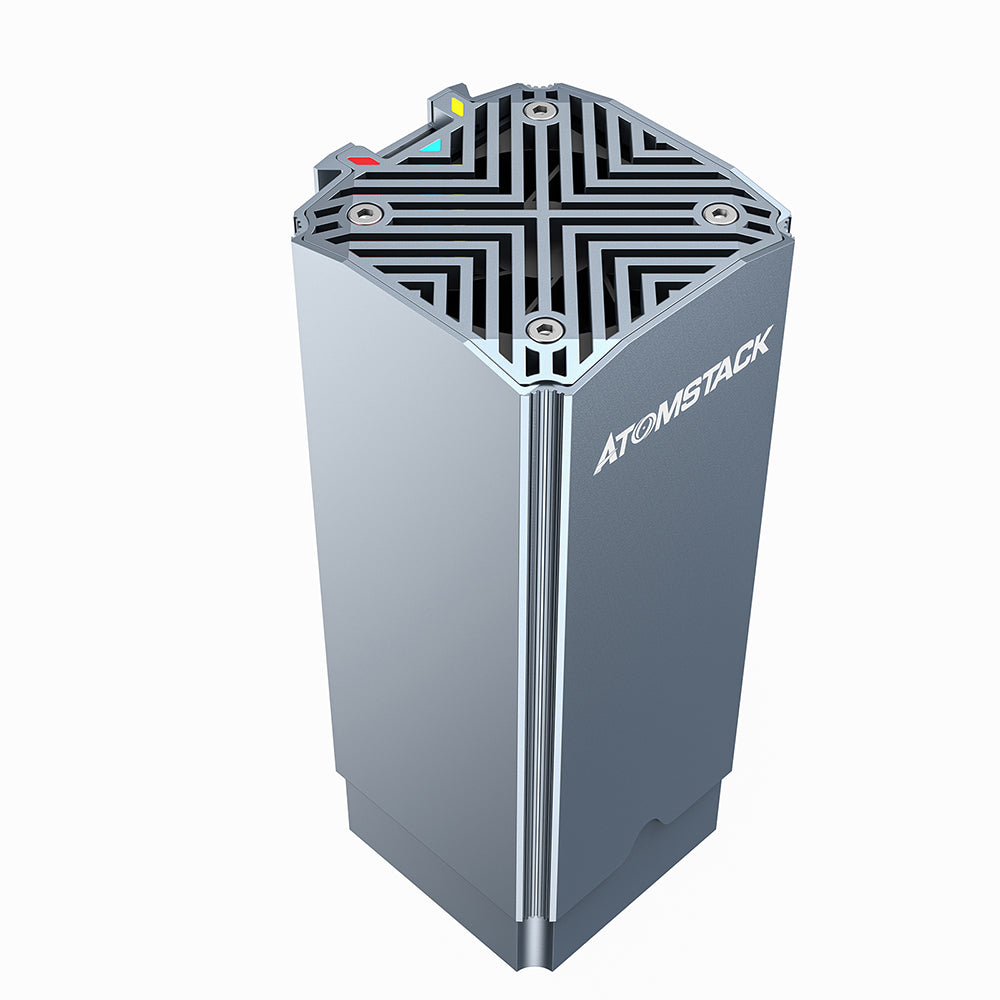

Atomstack R30 Infrared Laser Module Fiber Engraving Head with 0.03mm Circular Laser Spot For All Metals and Plastic Engraving
Atomstack
● Made for Engraving All Metal
● 20000Hz Pulse Energy
● 0.03mm Circular Laser Spot
● 40W Electric Power
● High Speed Precis Engraving
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales service
Atomstack R30 Infrared Laser Module Features:
- Ultra-high-precision engraving of various metal and plastic products (blue-light laser engraving of copper, gold, alloys, etc. is insufficient);
- Cold light source, no effect on human skin, no fire hazard;

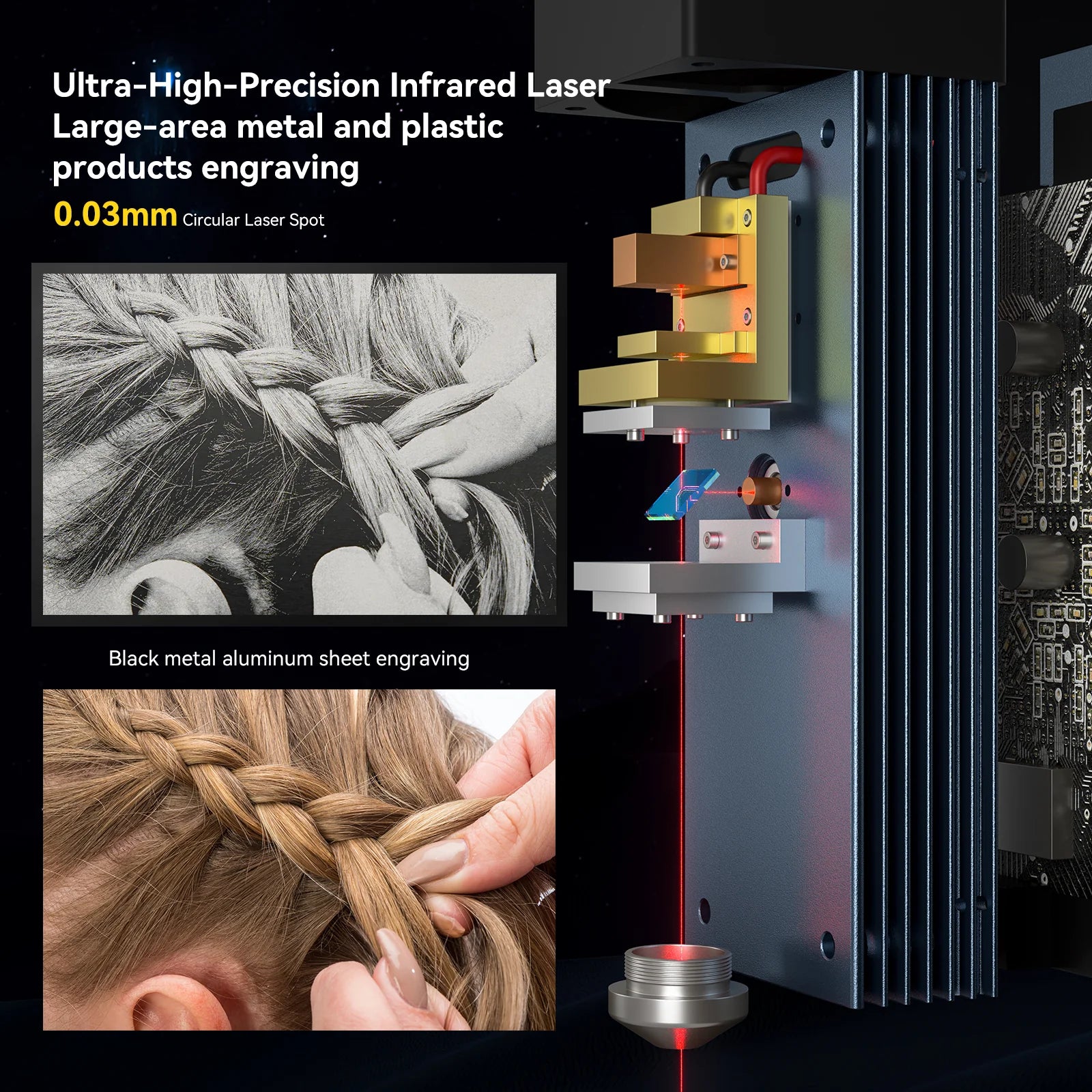

- The spot size is better than all fiber industrial lasers and blue light, 0.03mm diameter;
- The laser pulse frequency is 20000HZ, and the pulse energy is 6 times that of the blue laser;

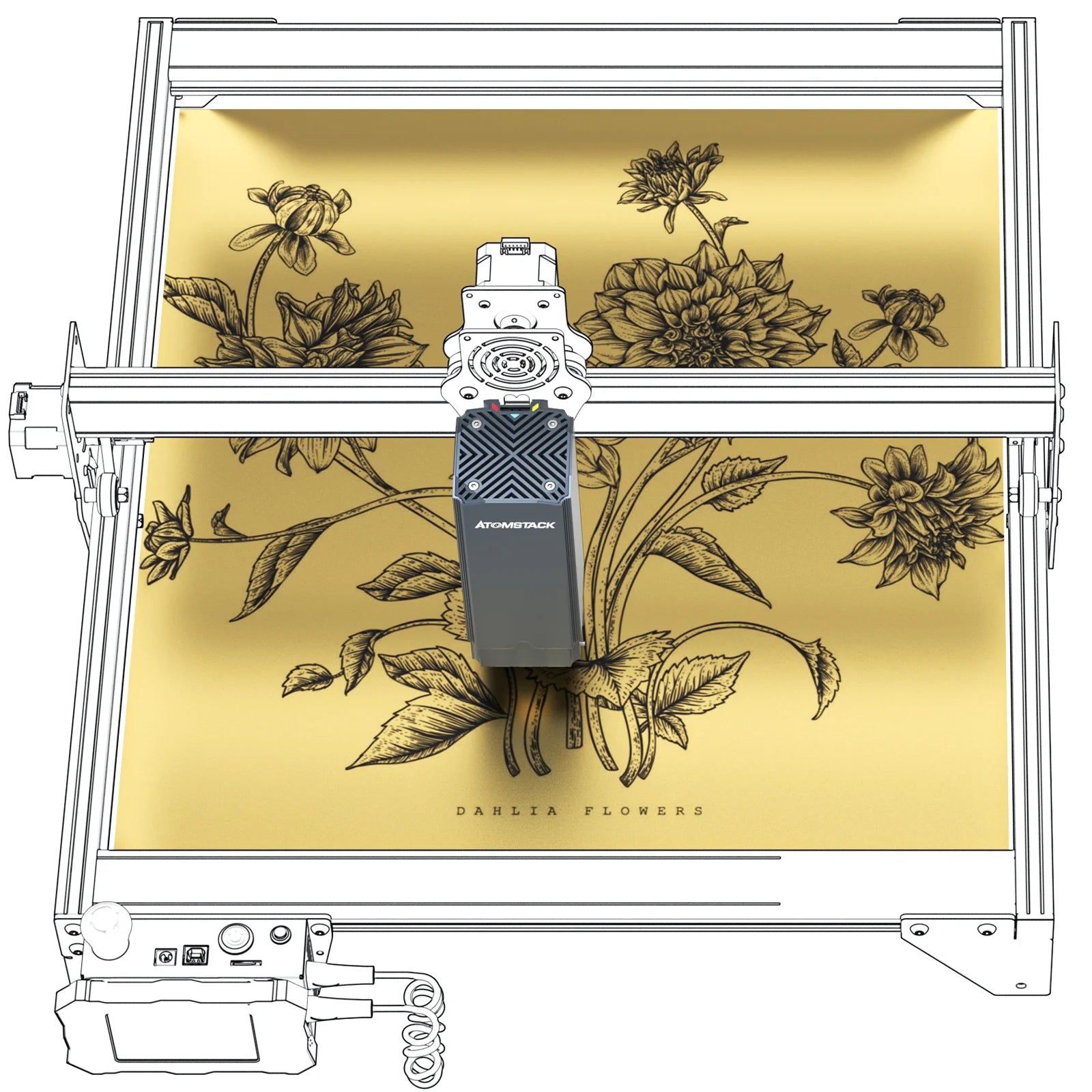

- Applicable to all engraving machine models of Atomstack, Ortur, Sculpfun, Two Trees and other brand models.

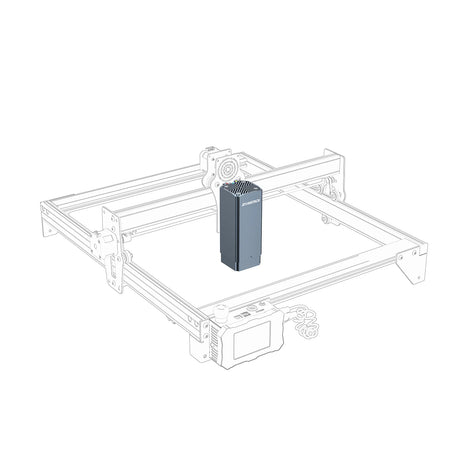

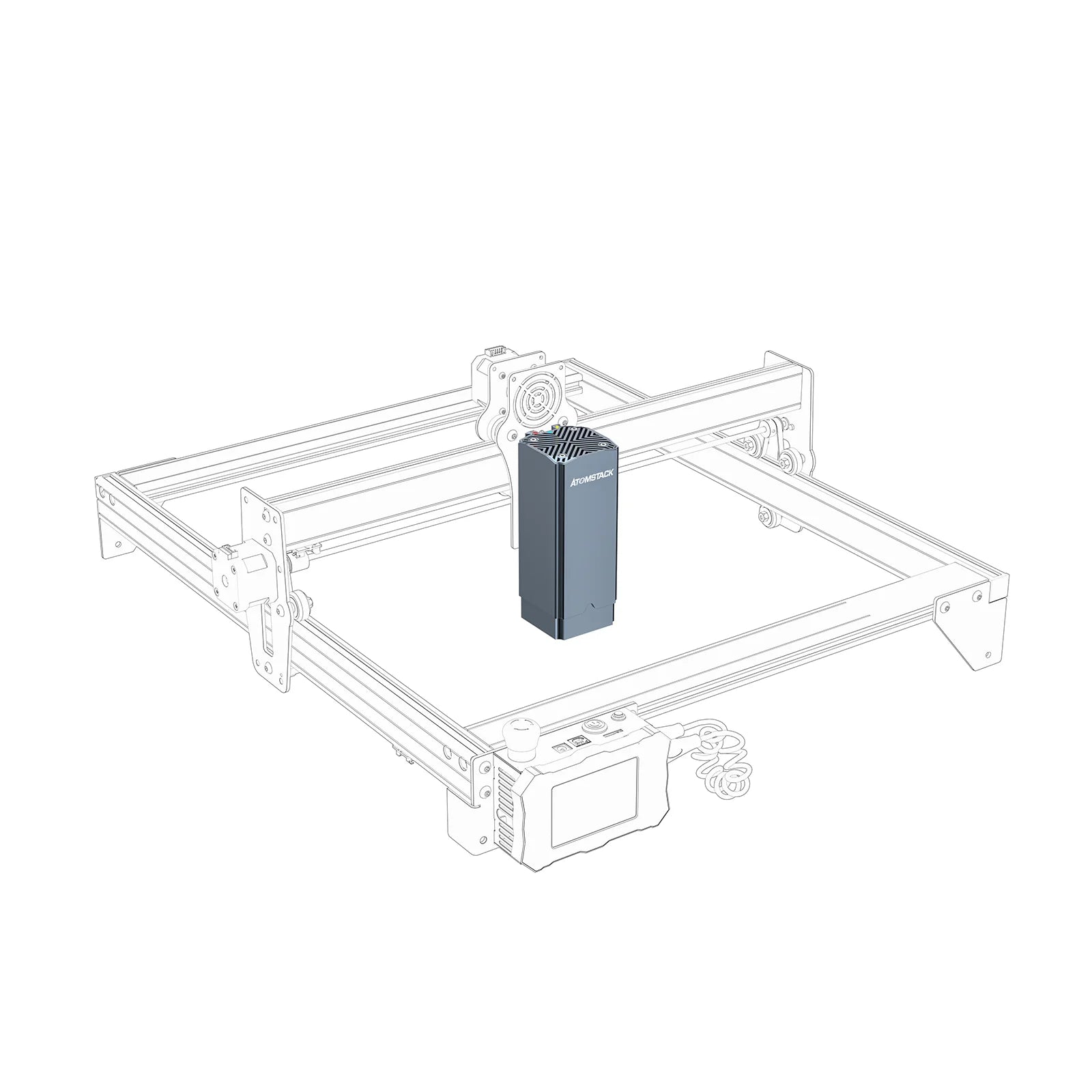

Atomstack R30 Applicable Models:
- X30 Pro
- X20 Pro, A20 Pro, S20 Pro, A20
- X7 Pro, A10 Pro, S10 Pro, X7 40W
- A5 Pro, A5 Pro+
- A5 M30, A5 M40, A5 M50
- A5 20W, A5 10W
- P9 M50, P9 M40, P7 M40, P7 M30
R30 Infrared Laser Module Parameters:
Product material | Aluminum product 6061 anodized treatment |
Shell size | 44*52*50mm |
Circuit board | 12V/PWM modulation board |
Circuit board size | 40*40mm |
Working temperature | 0℃~70℃ |
Working mode | Pulse work |
Laser beam mode | Fixed focus |
Spot size | 0.03mm |
Optical output power | 2W |
Laser wavelength | 1064nm |
Storage temperature | -40℃~85℃ |
Product net weight | 419g |
Pulse Energy | 20000Hz |
Packing List:
- 1 x R30 Infrared Laser Module
Precautions:
- Keep the equipment working or storing in a dry environment. To prevent dust inside the lens from affecting the shape of the laser spot.
- Working at high temperature will increase the threshold current, reduce the conversion efficiency and accelerate the aging of the device.
- When the output power is higher than its specific operating parameters, it will accelerate the aging of the equipment.
- When the working temperature of the laser diode exceeds 70 degrees, please do a good job of heat dissipation.
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
